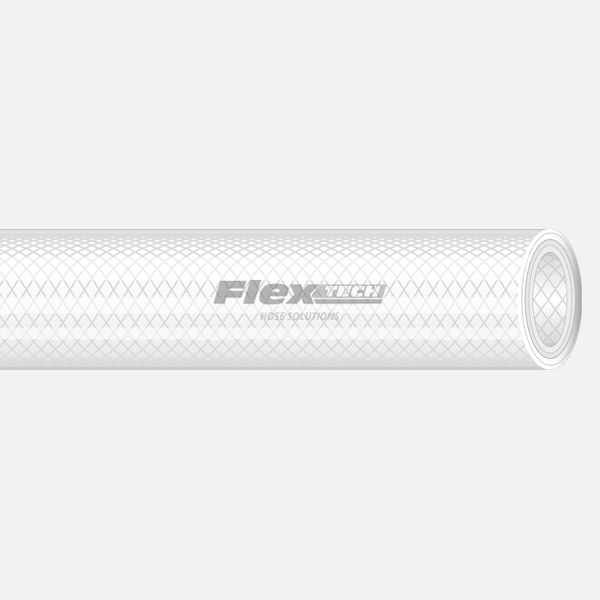

T4201 | Pharmaflex® Suction & Delivery Hose

A smoothbore hose manufactured from high purity platinum cured silicone. The stainless steel wire reinforcement ensures that flexibility is kept to a maxmium whilst simultaneously maintaining a balance between durability and weight.

Temperature range: -60°c to 200°c

[table “T6100” not found /]

Key Features

• Biopharmaceutical grade
• Excellent bend radius
• Smooth seamless extruded liner and cover
• Autoclavable and sterilisable
• Tasteless and odourless
• Platinum cured extruded liner
• Compatible with SIP and CIP regimes
• High transparency, no yellowing

Applications

Ideally suited for suction and delivery applications within the pharmaceutical, biotechnology and lifesciences industries such as feeding pumps, drug dispensing equipment, diagnostic equipment and processing equipment. Pharmaflex T4201 is primariliy designed for bulk transfer, medium pressure and vacuum process applications within the working environments of pharmaceutical operations.

Construction

Liner: High purity platinum cured extruded silicone smoothbore liner
Reinforcement: 302L Stainless steel helix with 4 layers of polyester braid
Cover: High purity platinum cured silicone (Translucent)

Standards

ISO 10993-6, IS0 10993-10, ISO 10993-11, ISO 9001:2008, EU ResAP 2004 (4), CE 1935/2004, Reg 10/2011/ECC, European Pharmacopoeia 3.1.9, BfR XV, BGA Class XV, FDA CFR 177.2600, USP Class VI, USP XXIV (87), USP XXIV (88), Meets & exceeds 3A sanitary approval, GB/T 21928-2008
